Switch E-Box Type 1

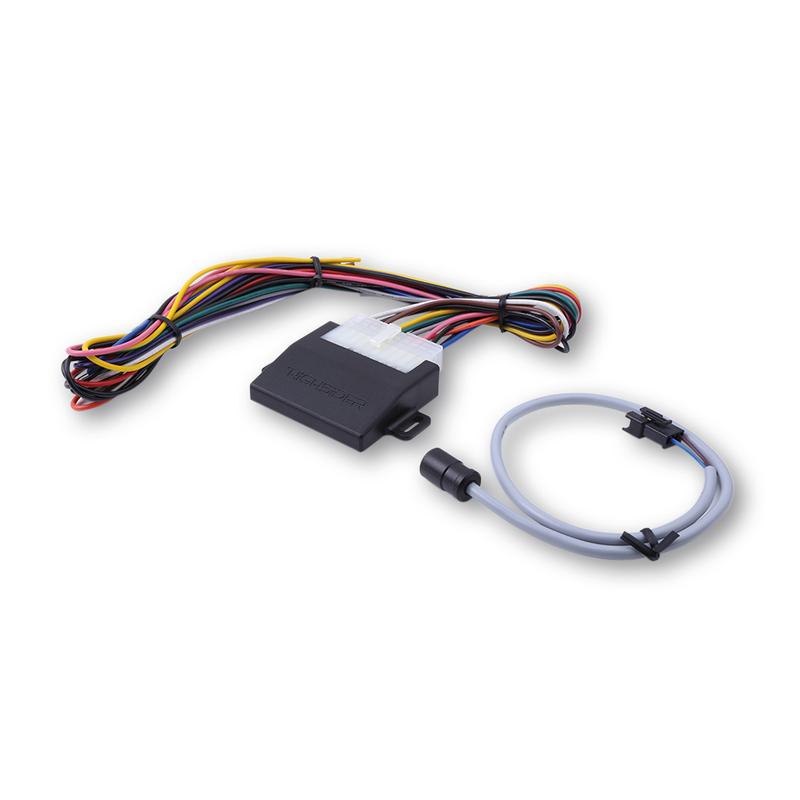

HIGHSIDER PW E-BOX TYPE 1, for switching daytime running lights with a light sensor.

For automatic switching between daytime running lights and dipped headlights. The HIGHSIDER PW E-BOX TYPE 1 detects brightness and automatically turns on both the dipped headlights and the daytime running lights (or vice versa) at the same time. The "COMING HOME FUNCTION" is also available (optional switchable). It allows the daytime lights to stay on for an additional 30 seconds after the motorcycle is stopped in the dark. No switch is needed.

Dimensions:
Height: 16 mm
Width: 56.5 mm
Width with mounting brackets: 75 mm
Length: 48 mm
Mounting tabs: 3 mm x 11 mm (oblong hole)
Weight: 46 g
Cable length: 400 mm
Length of light sensor cable: 600 mm (total)

Connectors:
Purple/black cable = main beam IN
Yellow/green cable = position light IN
Black cable = ground IN (-)
Red cable = power supply IN (+)
Blue cable = dipped headlight OUT
Black cable = ground OUT (-)
Pink cable = daytime running lights OUT (TFL)
Orange cable = dipped beam IN
Grey cable = programming cable
Green cable = main beam OUT
Brown cable = position/parking light OUT
Black cable = ground OUT (-)
White cable = TFL indicator OUT

4-pin connector for the light sensor

Scope of delivery:

HIGHSIDER PW E-BOX TYPE 1
Wiring harness
Light sensor
Instructions
