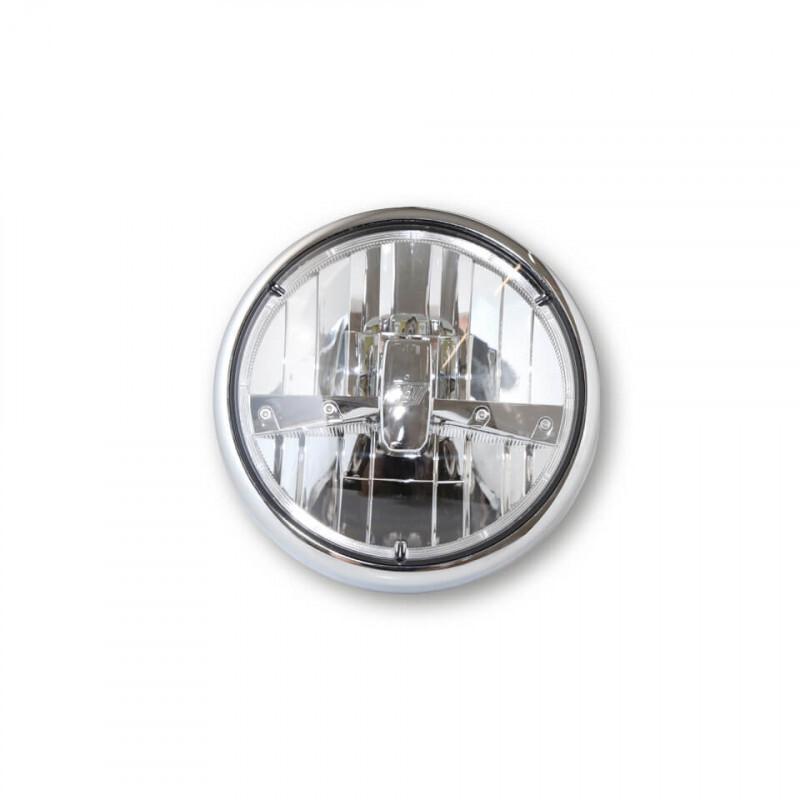

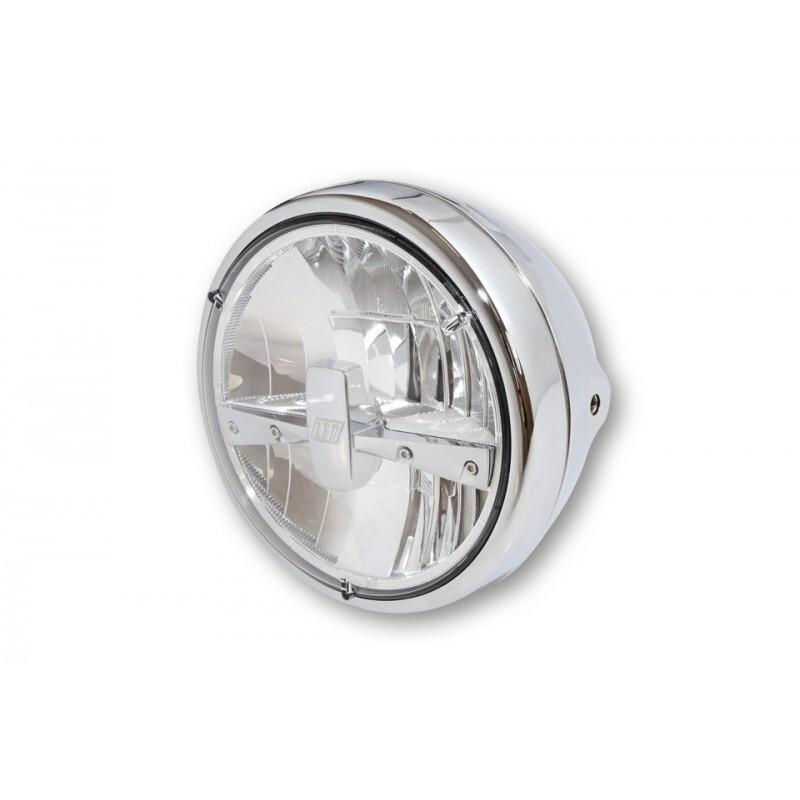

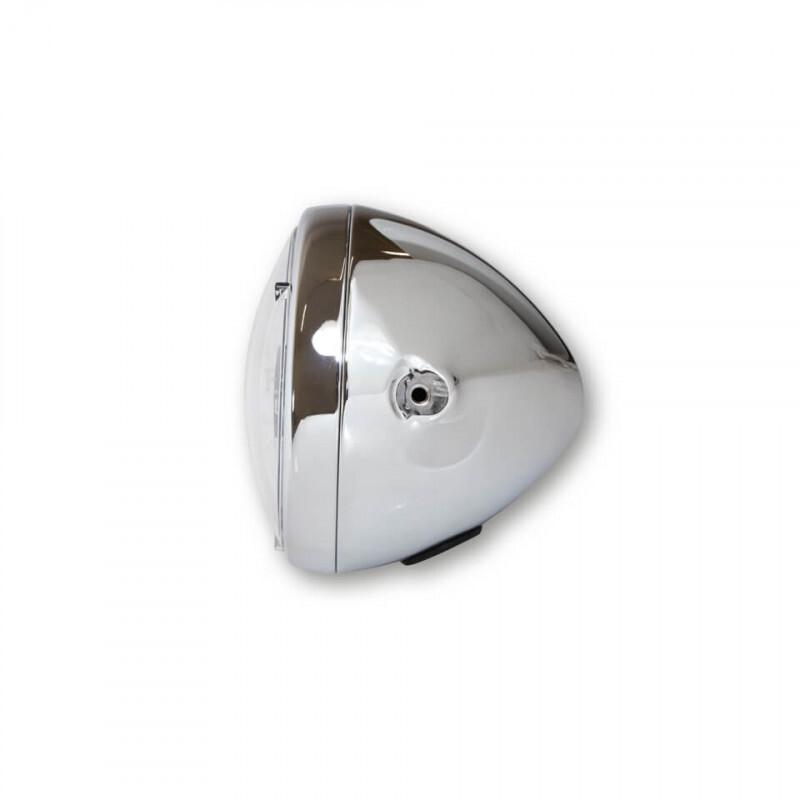

Motorcycle led headlight Reno Type 3 7"

LED headlight HIGHSIDER 7 inch RENO TYPE 3 for side mounting Innovative high-power

with position light function and glass transparent. Oval, chrome-plated, asymmetrical metal housing - approved for right-hand traffic only - reflector, E-approved.

Our highlights - give your bike a distinctive style! The sophisticated design and perfect technology of the HIGHSIDER headlight series make it a point highlight in every case!

Headlight dimensions:

• Housing diameter: 200 mm


• Headlight insert diameter: 178 mm


• Housing depth: 160 mm


• Distance between mounting holes (middle - middle): 170 mm


• Distance mounting hole (middle) to end of housing: approx.


• 90 mm mounting: laterally with M8 threaded bolt

Connections:

• 3-pin type A plug, female Cable length 210 mm (included in delivery)


• Green cable = ground (-)


• Blue cable = high beam (+)


• White cable = low beam (+)

Am Reflector in headlamp housing:

• Black cable = ground ( -)


• Red cable = low beam (+), current consumption: at 12 Volt 18 Watt, approx. 1132 lumens.


• White cable = high beam (+), current consumption: at 12 Volt 30 Watt, approx. 1770 Lumen.


• Brown cable = parking light (+), power consumption: at 12 volts 0.7 Watt.

Supplied with: 1 piece, including matching 3-pin connector

Please note:

Asymmetrical insert, only approved for right-hand traffic.

Optional on order

Replacement insert, chrome-plated: Art. No.: 226-015

HIGHSIDER
