Motorcycle battery charger with panel Solar Duo

OptiMate Solar DUO 20W, the solar charger and intelligent maintenance system for all “12V” batteries – charger by day, controller by night!

Ideal for 12V lead-acid/lithium batteries of 12.8V

The intelligent charge controller automatically adjusts the charge based on the type and state of the battery – The smart control of OptiMate Solar DUO ensures a longer life and more power for the battery!

The fully automatic multi-stage program of the controller safely recharges the battery completely – Simply connect the battery and OptiMate Solar DUO 20W takes care of the rest, no monitoring needed!

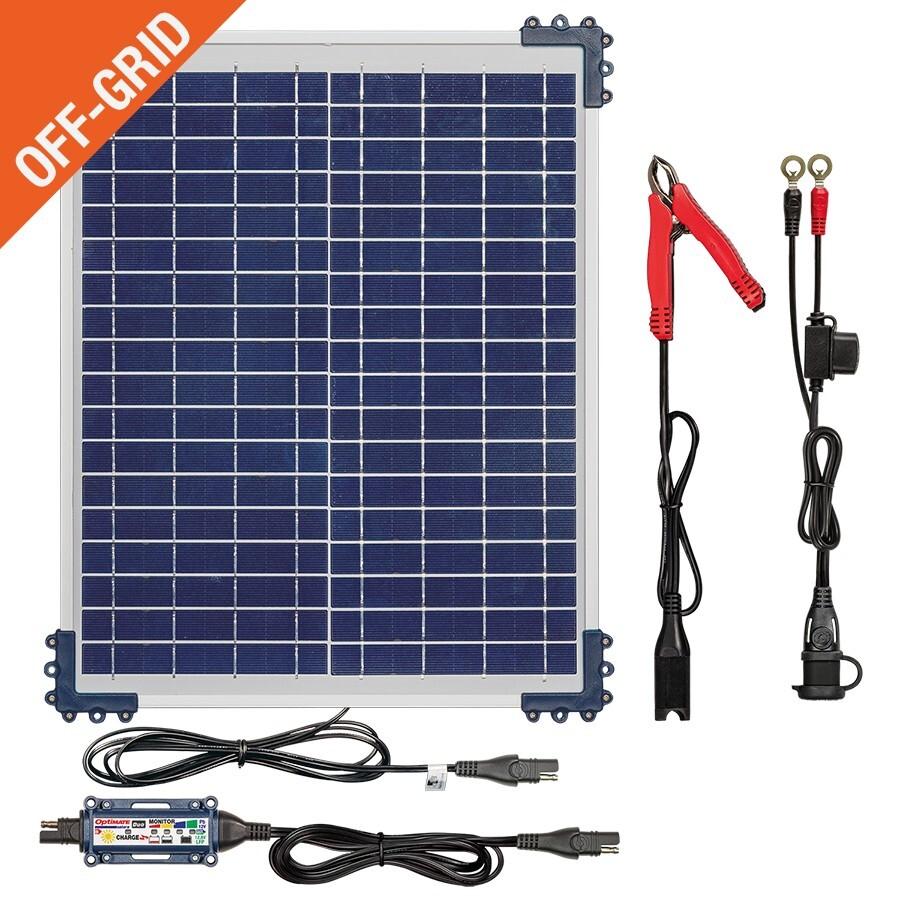

INCLUDES: waterproof battery lead, standard battery clip kit, 20W solar panel, and controller OptiMate Solar DUO

CHARGE

Recovers fully discharged batteries from 4V thanks to its unique pulse charging. Faster charging – thanks to smart charge control that selects either pulse or continuous charging based on sunlight intensity. Smart maintenance – continues the next day if the battery has retained charge overnight, otherwise the program returns to the OPTIMIZATION stage.

CONTROL

The battery status is displayed every 3 seconds. Ready indication for standard, high-performance AGM, and lithium LFP batteries. The control mode uses less than 0.5 mA. Automatically switches to CHARGE mode when there is sufficient solar energy.

INSTALLATION

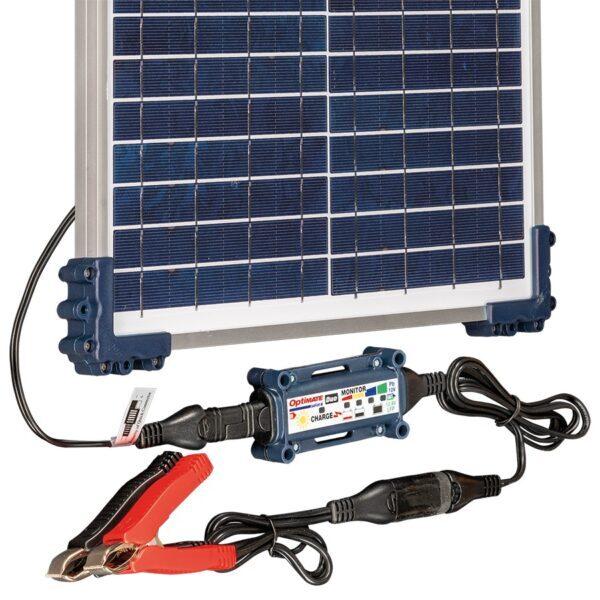

The OptiMate charger-controller is independent of the solar panel and can be placed near the vehicle or battery for easy monitoring of charge and maintenance indications. The solar panel must be mounted and exposed to direct sunlight. The range/distance between the battery and the panel is 315 cm / 124". To extend this, use OptiMate O-03, O-13, or O-23 extension cables and connect them between the solar panel and the OptiMate charger-controller.

External dimensions, including angled mounting brackets: Width = 36.2 cm / 14.3” Height = 45.5 cm / 17.9” Depth = 2.6 cm / 1”

Solar panel:

CURRENT: 20 Watts (max.)

VOLTAGE: 12V / 12.8V

USAGE: Outdoor.

STYLE: Polycrystalline, weather-resistant aluminium frame with 4 fixing elements, 200 cm/80” output cable with SAE connector

Charge controller OptiMate:

CHARGE AMPERAGE: 1.67A from 20W panel (average maximum current), pulses 3-5 A.

USAGE: Indoor/Outdoor (lowest temperature: -20°C).

RECOVERY: Low voltage start from 4V

IDEAL FOR: 12V STD, AGM, and GEL batteries from 2 to 240Ah and lithium LFP batteries 12.8V/13.2V

INPUT: 15 – 22V

STYLE: Weather-resistant charge controller case.

INCLUDED ITEMS: Waterproof battery lead, standard battery clip kit, 20W solar panel

SAFE: No risk of overcharging. Totally safe for vehicle electronics. Spark-free operation. Long-term safe battery maintenance. Automatic shutdown in case of short circuit or if the battery is disconnected.

WARRANTY: Limited 3-year replacement warranty.
